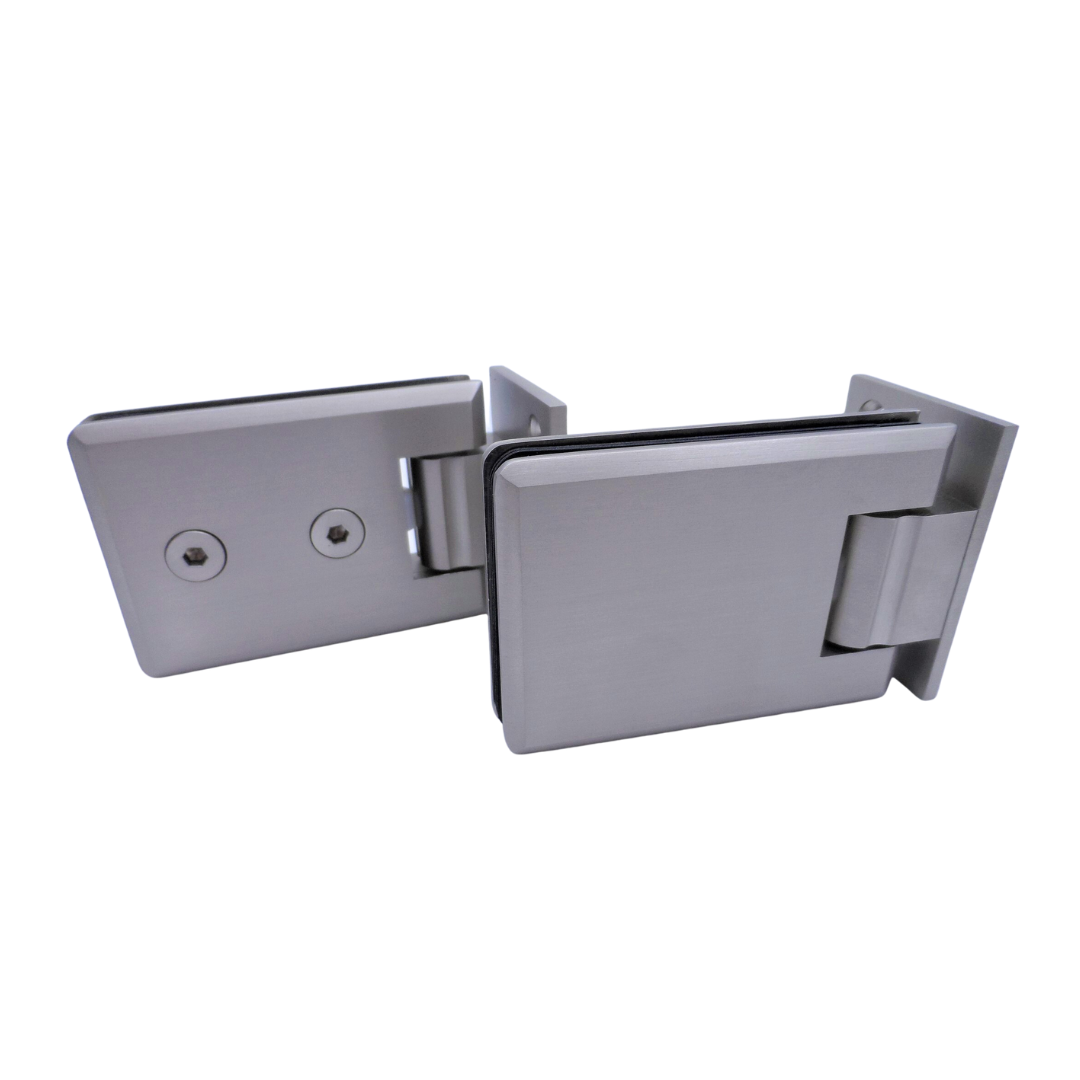

Brushed Chrome Glass to Wall 90 Degree Door Hinge (Single)
£49.99 inc. VAT
Product Description
Wall Mounted, Brushed Chrome Glass Door Hinge. 90 Degree Opening in Both Directions, with Automatic Closing when open less than 25 degrees. Product Includes necessary Allen Keys and Glazing Washers. Fixing Screws provided as standard, however alternative fixings may be required subject to application and structural requirements.
*Pack of 1
Product Dimensions
92mm (w) x 60mm (h)
Glass Specification
Suitable for 8mm & 10mm Toughened Glass. Glass Preparation & Reduction Required.
Material Specification
All Components in Brass
Environment Compatibility
Suitable for indoor and outdoor use (not suitable for marine environments).
Design Compatibility
Suitable for Shower Enclosures, Wet Rooms, Bath Screens, and Glass Doors.
Hinge Capacity
Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
Clamping screws to be tightened to 8-10 Nm
Product Downloads
Product Enquiry
Related products
-

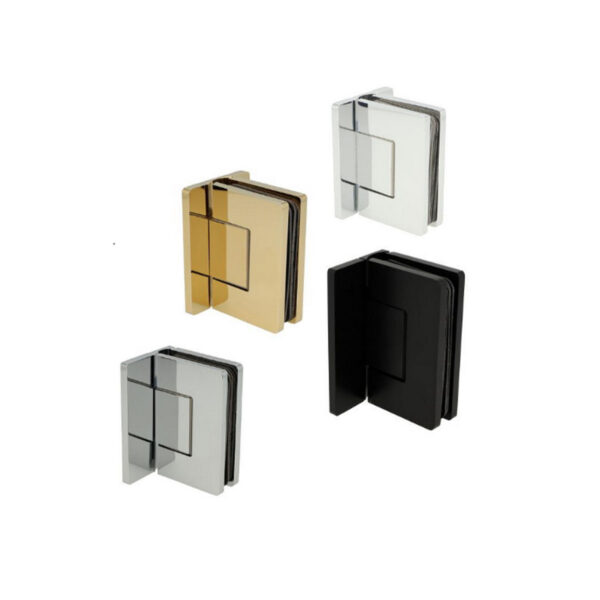

Adjustable Glass-to-Wall Door Hinge (Single)
