Banana Slide 80 Ceiling Mounting for 8mm – 10mm glass
Sliding Door System
From £309.60 inc. VAT
Product Description

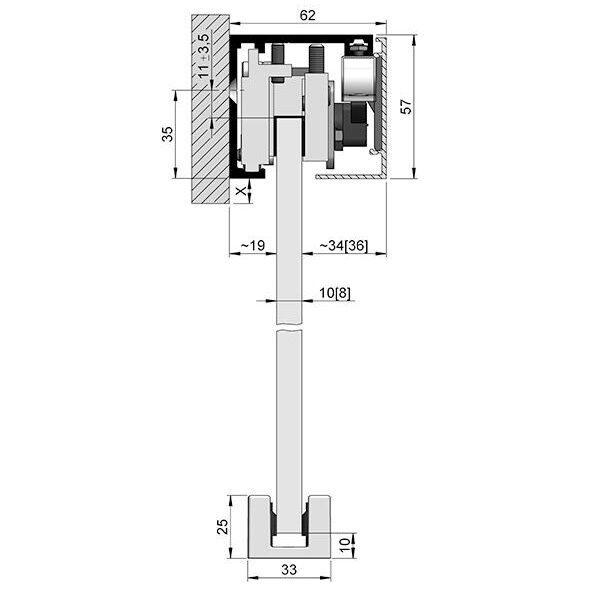

Stylish and easy ceiling mounted sliding door system for glass doors – technical diagram can be downloaded here.
Product Dimensions
57mm(h) x 62mm(w) x 2000mm (l)
57mm(h) x 62mm(w) x 2500mm (l)
57mm(h) x 62mm(w) x 3000mm (l)
Glass Specification
8mm to 10mm glass thickness
Material Specification
Natural anodised (RAL 9005 matt and Stainless steel look also available, call 020 8500 1188 for more information)
Environment Compatibility
Suitable for indoor use
Design Compatibility
– Door weight max. 80 kg
– Minimum distance to the wall: 18mm
– Double doors with double-sided soft closing system
– Door width 700mm
Product Additional information
| Size (W) x (H) x (L) cm | 6.2 x 5.7 x 200cm, 6.2 x 5.7 x 250cm, 6.2 x 5.7 x 300cm |
|---|---|
| Colour | Silver |
Product Downloads
Product Enquiry
